Transformers color and fill scales for ggplot2 — scale

Color and fill scales that use a character's palette. The _d variants are for discrete data, the _c variants for continuous data, and scale_colour_tf() / scale_fill_tf() choose between the two with the discrete argument. scale_color_* spellings are aliases.

Usage

scale_colour_tf_d(
  palette = "optimus_prime",
  reverse = FALSE,
  medium = "toy",
  ...
)

scale_fill_tf_d(
  palette = "optimus_prime",
  reverse = FALSE,
  medium = "toy",
  ...
)

scale_colour_tf_c(
  palette = "optimus_prime",
  reverse = FALSE,
  sort = FALSE,
  medium = "toy",
  ...
)

scale_fill_tf_c(
  palette = "optimus_prime",
  reverse = FALSE,
  sort = FALSE,
  medium = "toy",
  ...
)

scale_colour_tf(
  palette = "optimus_prime",
  discrete = TRUE,
  reverse = FALSE,
  sort = FALSE,
  medium = "toy",
  ...
)

scale_fill_tf(
  palette = "optimus_prime",
  discrete = TRUE,
  reverse = FALSE,
  sort = FALSE,
  medium = "toy",
  ...
)

scale_color_tf_d(
  palette = "optimus_prime",
  reverse = FALSE,
  medium = "toy",
  ...
)

scale_color_tf_c(
  palette = "optimus_prime",
  reverse = FALSE,
  sort = FALSE,
  medium = "toy",
  ...
)

scale_color_tf(
  palette = "optimus_prime",
  discrete = TRUE,
  reverse = FALSE,
  sort = FALSE,
  medium = "toy",
  ...
)

Arguments

palette: Name of a character's palette. See tf_palette_names().
reverse: Logical. Reverse the order of colors in the palette?
medium: Which version of the character to use: "toy" (default), "cartoon" or "comic". See tf_media().
...: Additional arguments passed on to ggplot2::discrete_scale() (discrete) or ggplot2::scale_colour_gradientn() / ggplot2::scale_fill_gradientn() (continuous).
sort: Logical, continuous scales only. Order the palette from darkest to lightest before building the gradient, so the scale reads as low-to-high. See tf_find_palettes() for palettes that suit this.
discrete: Logical. If TRUE (default) build a discrete scale, otherwise a continuous gradient scale.

Value

A ggplot2 scale object.

Details

Discrete scales draw the first n colors of the palette, where n is the number of levels in the data. If the data has more levels than the palette has colors, the palette is interpolated with grDevices::colorRampPalette() so that every level still receives a distinct color; expect the result to be less legible than the curated colors. For a palette with one color per member of a combiner team, pass tf_team_palette() to ggplot2::scale_colour_manual().

Examples

library(ggplot2)

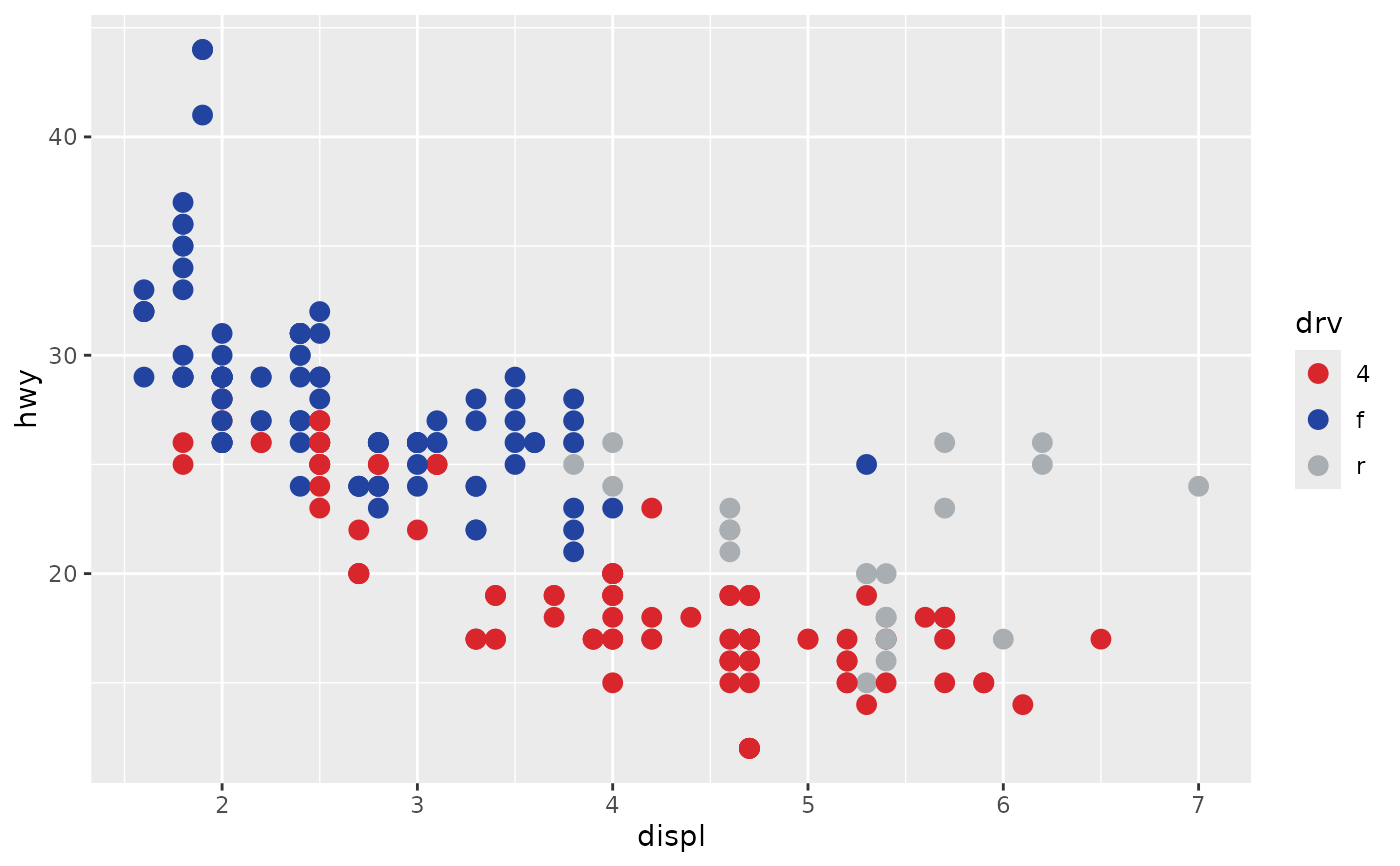

ggplot(mpg, aes(displ, hwy, colour = drv)) +
  geom_point(size = 3) +
  scale_colour_tf("optimus_prime")


ggplot(mpg, aes(displ, hwy, colour = drv)) +
  geom_point(size = 3) +
  scale_colour_tf("optimus_prime", medium = "cartoon")

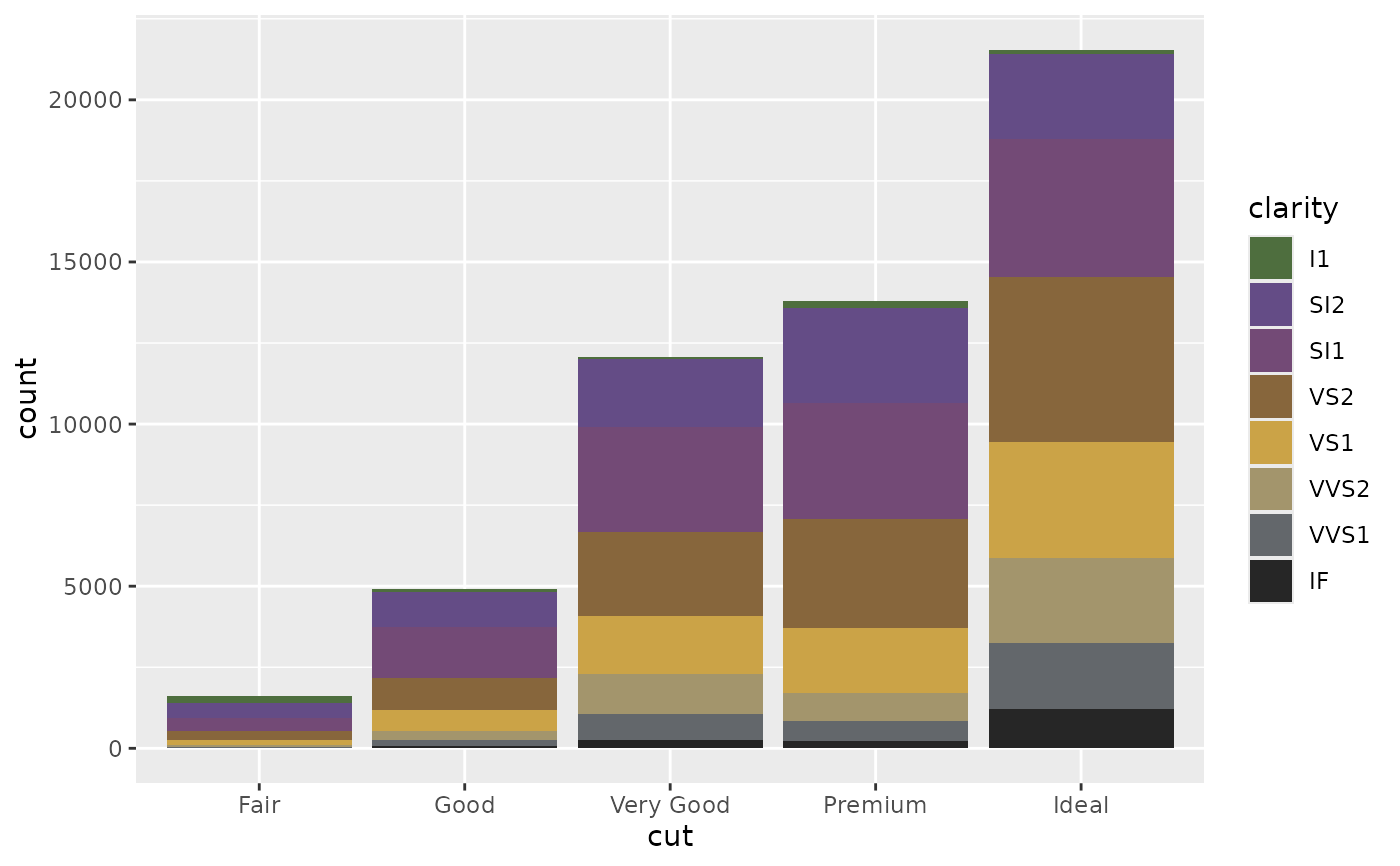

ggplot(diamonds, aes(cut, fill = clarity)) +
  geom_bar() +
  scale_fill_tf_d("bruticus")

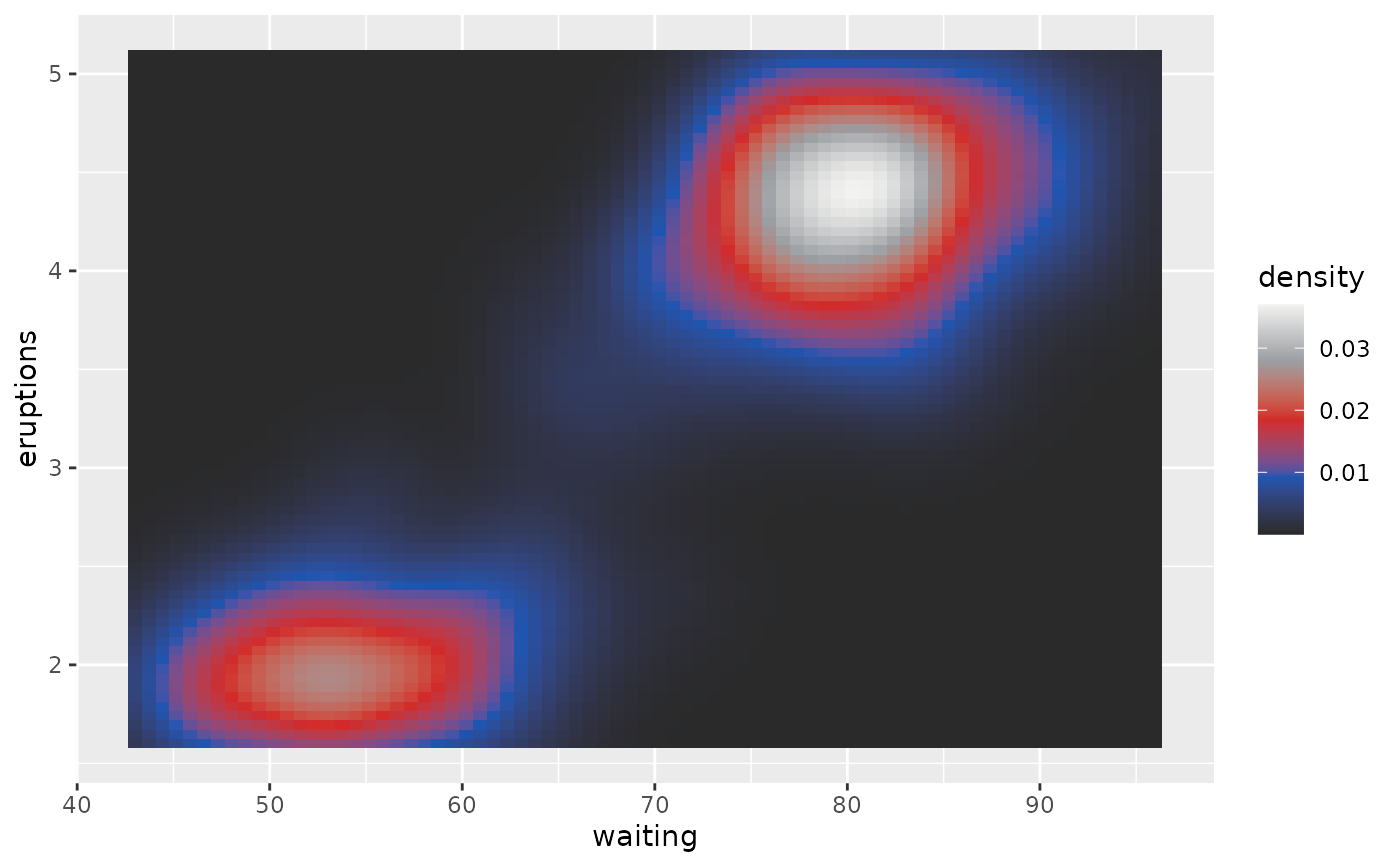

ggplot(faithfuld, aes(waiting, eruptions, fill = density)) +
  geom_tile() +
  scale_fill_tf_c("hot_spot", sort = TRUE)
